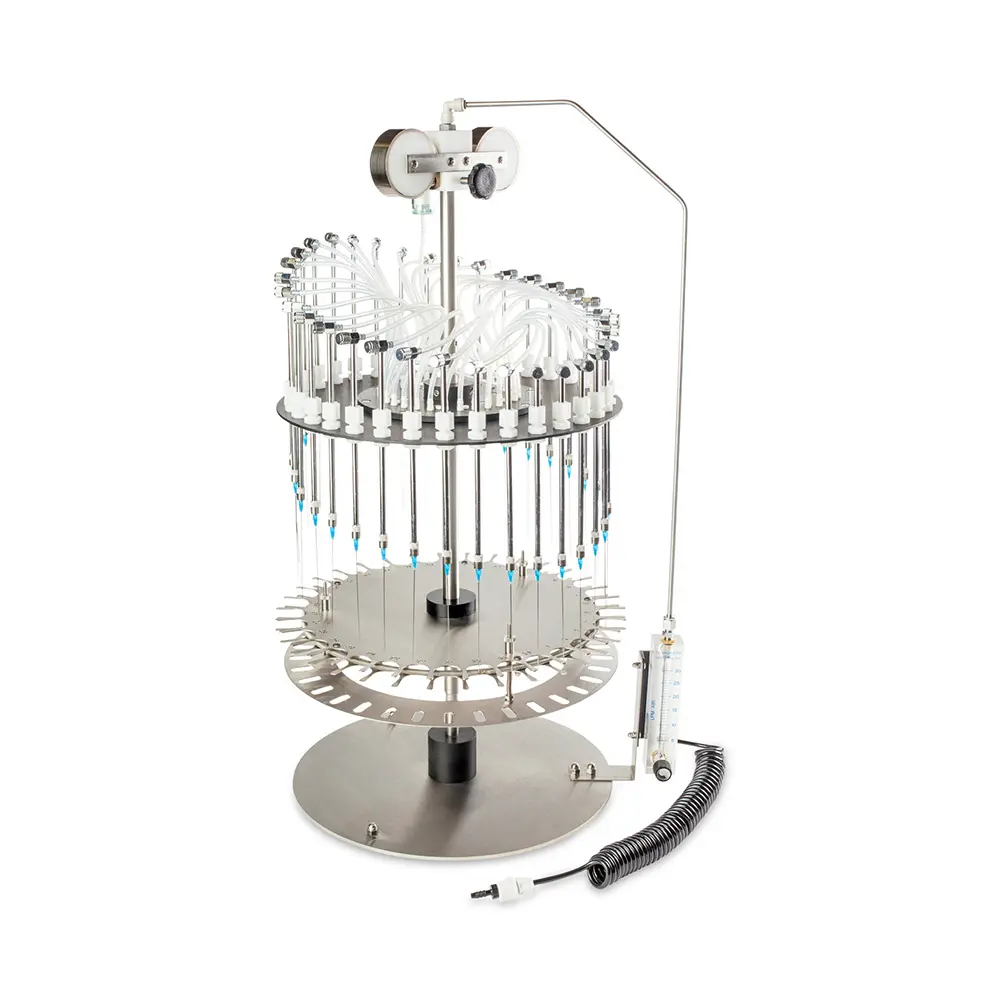

The 34 position N-EVAP (Catalog# 11634) combines the iconic flexibility of the N-EVAP line with digital features for improved control over the evaporation process. This time-tested, durable system provides one of the least expensive prices per position of all the N-EVAPs.
| 34 Position N-EVAP Specifications | ||
| Bath Type | Water | None |
| Instrument Catalog Number | 11634 | 11634-DA |
| Number of Sample Plates | 34 | 34 |
| Overall Dimensions (W x D x H) |
24 x 19 x 34 in 61 x 48 x 86 cm |
19 x 17 x 32 in 48 x 43 x 81 cm |
| Standard Sample Holder Test Tube Range | 10-30 mm | 10-30 mm OD |
| Gas Flow Meter | 0-30 LPM | 0-30 LPM |
| Stainless Steel Needles Length and Gauge | 4.0 in x 19ga 102 mm x 19ga |
4.0 in x 19ga 102 mm x 19ga |
| Sample Tray Lift Mechanism | Dual Band Spring Hoist Assembly | Dual Band Spring Hoist Assembly |
| Standard Gas Input Range | 50-110 psi | 50-110 psi |
| Heating Device Specifications | ||
| Bath Model Number | 13165 | N/A |
| Heating Medium | Water | None |
| Inside Dimensions (Diameter x Depth) |
16 x 4.5 in 40.6 x 11.4 cm |
N/A |
| Outside Dimensions (W x D x H) |
24 x 19 x 6 in 61 x 48 x 15 cm |
N/A |
| Total Wattage | 1300 W | N/A |
| Temperature Range | 30-90 °C | N/A |
| Temperature Controller Type and Controller Accuracy |
Mechanical +/- 2°C |
N/A |
