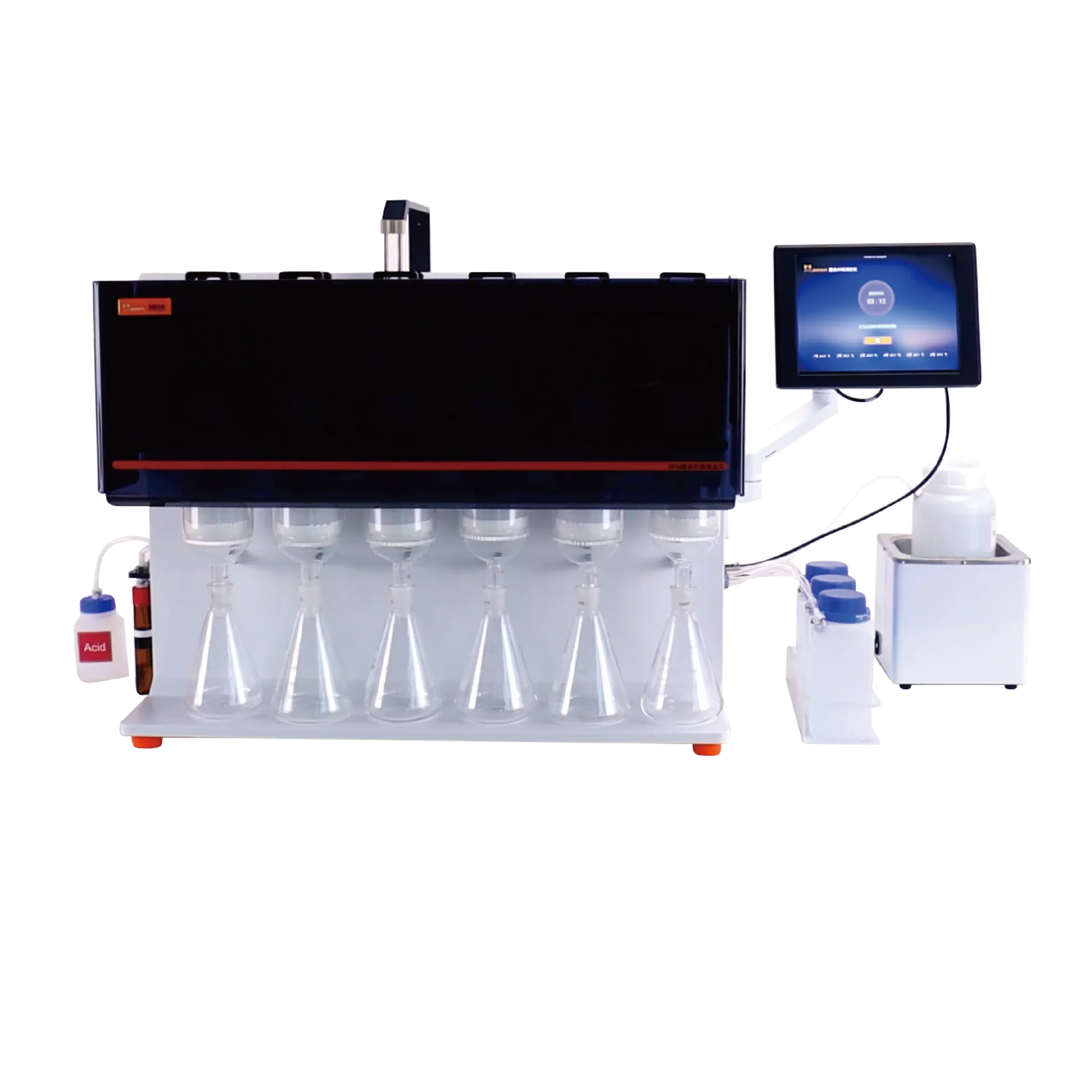

DF06 Automatic Dietary Fiber Analyzer

Key features:

Efficient & Automatic

• Integrates automatic liquid addition, heating, stirring, precipitation and vacuum filtration.
• Automatically controls the opening and closing of the reaction bag during enzymatic digestion, helping prevent reagent evaporation at high temperature.
• Uses a straight-through flexible reaction bag so the sample is automatically transferred to the filtration section after precipitation without manual sample transfer.

Accurate & Reliable

• Built-in automatic pipeline cleaning helps prevent blockage caused by deteriorated enzyme solution and improves liquid-addition accuracy.
• Real-time temperature control and monitoring for each channel, with temperature control accuracy within ±1°C.
• Non-contact stirring promotes efficient mixing of the sample and enzyme solution while avoiding direct contact between the stirrer and sample.
• Uses filter membranes instead of traditional crucibles. The membrane can be directly digested and ashed with the sample, reducing errors caused by sample-transfer residue.

Easy to Use

• Ergonomic lifting-arm operating platform allows the control screen position to be adjusted.
• Built-in method library allows preset methods to be recalled with one touch for automatic testing.
• Six channels can be independently controlled and selected according to the number of samples.
• Vacuum filtration requires no back-blowing or external gas source.

Safety & Compliance

• Complies with relevant FDA 21 CFR Part 11 requirements, with three-level username and password login and traceable instrument operations.

Related Standards:

• • GB 5009.88 — National Food Safety Standard: Determination of Dietary Fiber in Foods
  • GB/T 22224-2008 — Determination of Dietary Fiber in Foods by Enzymatic-Gravimetric Method and Enzymatic-Gravimetric–Liquid Chromatography Method
  • AOAC 985.29 — Total Dietary Fiber in Foods
  • AOAC 991.43 — Total, Soluble, and Insoluble Dietary Fiber in Foods

Specifications:
