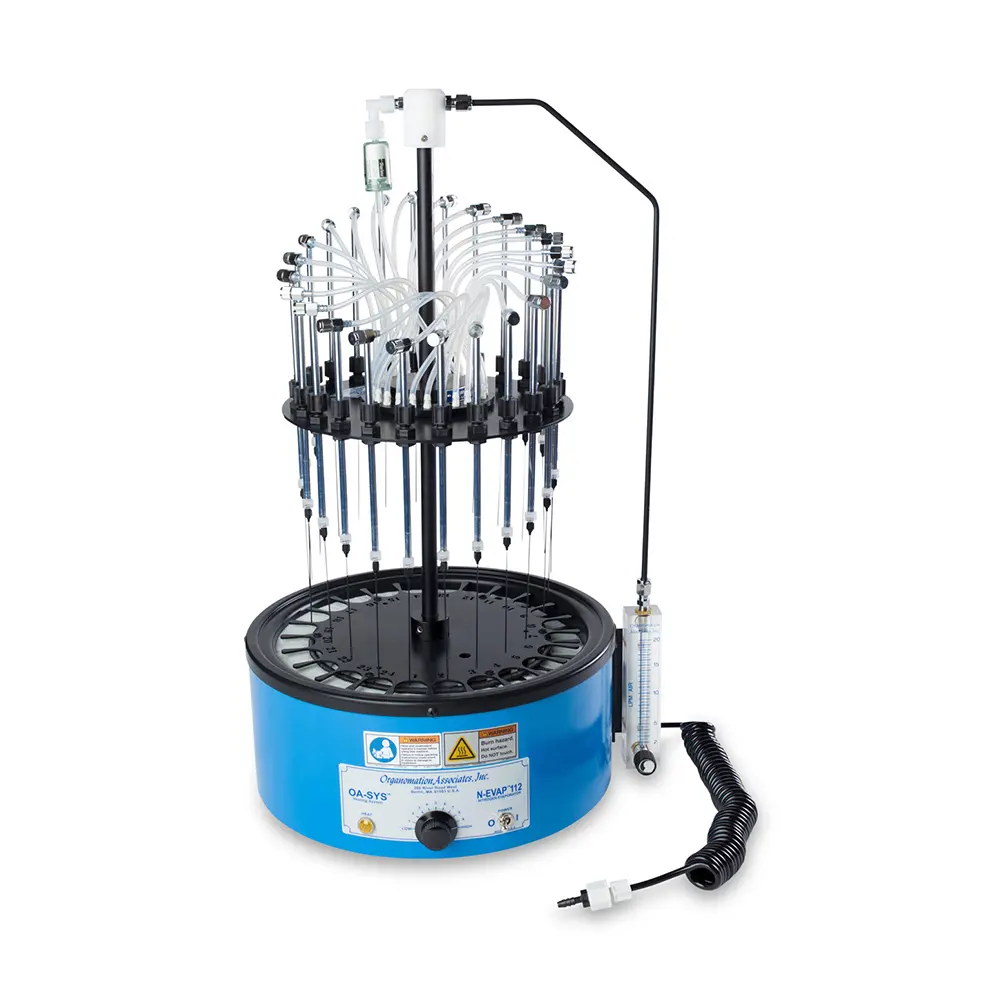

| 24 Position N-EVAP Specifications | |||
| Bath Type | Water | Dry | None |
| Instrument Catalog Number | 11250 | 11250-DA | 11250-O |
| Number of Sample Plates | 24 | 24 | 24 |
| Overall Dimensions (W x D x H) |
16 x 15 x 33 in 41 x 38 x 84 cm |
16 x 15 x 27.5 in 41 x 38 x 70 cm |
15.25 x 12 x 31.75 in 39 x 31 x 81 cm |
| Standard Sample Holder Test Tube Range | 10-30 mm | 10-30 mm OD | 10-30 mm OD |
| Optional Sample Holder Test Tube Range | 30-70 mm OD | 30-70 mm OD | 30-70 mm OD |
| Gas Flow Meter | 0-20 LPM | 0-20 LPM | 0-20 LPM |
| Stainless Steel Needles Length and Gauge | 4.0 in x 19ga 102 mm x 19ga |
4.0 in x 19ga 102 mm x 19ga |
4.0 in x 19ga 102 mm x 19ga |
| Sample Tray Lift Mechanism | Dual Band Spring Hoist Assembly | None / Fixed |
Dual Band Spring Hoist Assembly
|
| Standard Gas Input Range | 20-30 psi | 20-30 psi | 20-30 psi |
| Heating Device Specifications | |||
| Bath Model Number | 9125 | 5125 | N/A |
| Heating Medium | Water | Aluminum Beads (Glass Beads in -RT Models) | None |
| Inside Dimensions (Diameter x Depth) |
12 x 4.5 in 30.5 x 11.4 cm |
12 x 4.5 in 30.5 x 11.4 cm |
N/A |
| Outside Dimensions (W x D x H) |
16 x 15 x 7 in 41 x 38 x 18 cm |
16 x 15 x 7 in 41 x 38 x 18 cm |
N/A |
| Total Wattage | 900 W | 540 W | N/A |
| Temperature Range | 30-90 °C | 40-130 °C | N/A |
| Temperature Controller Type and Controller Accuracy |
Mechanical +/- 2°C |
Mechanical +/- 2°C |
N/A |
